1.7 - Software Organization For WebGL Programs¶
A WebGL program is made up of a significant amount of software. Without good software organization and abstraction, your ability to maintain and enhance these graphic programs over time will be greatly diminished. Most programmers dislike having a prescribed software structure imposed on them. There are many ways to design software and a good design for one programmer might be confusing to a different programmer. But there is no getting around the fact that a well designed software structure is needed.
JavaScript supports object-oriented programming and the software in this textbook is designed as a collection of objects for the following important reasons:
- Javascript has a large number of variables and functions in its global address space. You should always design software that limits the number of values and functions that are defined globally, but even more so for JavaScript. This protects you from overwriting and redefining built-in Javascript functionality.
- Good software design mandates that data and its related functionality be combined into a logical unit. This creates a logical organization of your code, and protects the data inside each object from accidental modification.
- Your code should be structured in a way that facilitates multiple 3D graphics renderings in multiple canvas windows on a single web page. Creating Javascript classes that can be used to create separate object instances, one for each canvas rendering, just makes sense.
- Some of your Javascript code can be generic enough to be re-used for a variety of graphics projects. Other code will be very program specific. If you don’t separate generic code from program specific code, you will limit your code re-use. WebGL applications are complex and you will want to re-use code as often as possible.
- WebGL code is interdependent. If you change one statement in a shader program it might require you to change many aspects of your related Javascript code. Object-oriented design will help you to separate interdependent code from other “standalone” code.
- The importance of isolating one-time initialization code from repeatedly executed rendering code can’t be overstated. Your code should make it very clear which logic is executed only once as a pre-processing step. This will make it easier for you to optimize your graphics for real-time rendering speeds.

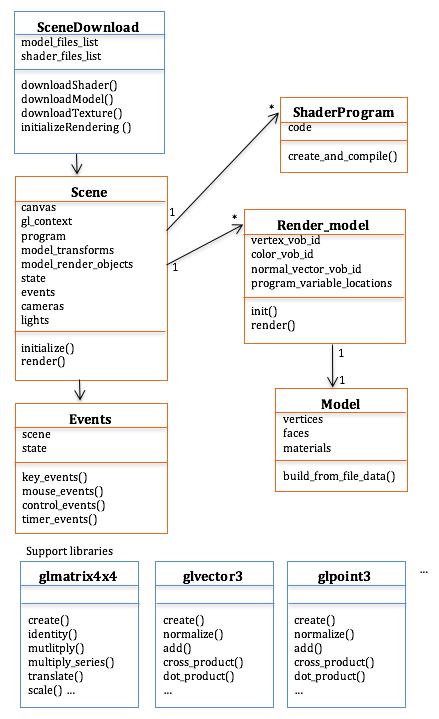

A sample of the software structure used in these tutorials is shown in the UML (Unified Modeling Language) diagram below. The arrows indicate relationships. The classes in blue boxes are static Javascript libraries that remain unchanged from one WebGL program to another. The classes in the orange boxes are Javascript code that changes based on the sophistication and type of graphics being produced.
The details of the UML diagram above are not important at this point. What is important is that you understand that object-oriented programming will be critical to the successful implementation of your WebGL programs. For example, a scene is typically composed of multiple models. It makes sense to create an object for each model. This isolates the complexity of each model in a separate JavaScript object and it greatly facilitates code re-use.
The Javascript classes defined in this software design are written with understanding and clarity in mind. They are well documented, broken into separate files, and coded using descriptive names. These classes are open-source and intended for your re-use. If you were to use them as part of a larger “production” program, they would typically be combined into fewer files and minified by removing white space and comments. It is not recommended that you minify your Javascript code until you have a completely debugged implementation of your program. In addition, you are highly encouraged to keep a non-minified version of your program around for future debugging and enhancements.
Much of your learning from this textbook will come from modifying example WebGL programs. In some instances you will be able to change one line of code and see immediate changes in the output. However, as more advanced computer graphics concepts are introduced, modifications to the example code will require many simultaneous changes to multiple objects. This is another reason why the of use good object-oriented design is helpful.
Since you will be studying code examples and modifying existing code, the next section discusses coding standards.
Glossary¶
- JavaScript
- a programming language supported by web browsers that allows for the modification of web pages. JavaScript runs on the client computer and performs client-side processing.
- object-oriented programming
- a style of programming where a class defines a collection of data and a set of methods/functions that manipulates that data. Multiple instances of a class can be created to implement separate objects of the class.
- class
- a collection of data and a set of methods/functions that manipulates that data.
- object
- an instance of a class that contains unique data. The manipulation of an object does not affect other objects implemented from the same class.
- global identifier
- a variable or function that can be used anywhere in a program. Global identifiers are bad and should be avoided whenever possible.
Self-Assessments¶
-
Q-20: Object-oriented programming facilitates WebGL programming because … (Select all that apply.)
- the constructor of an object can perform the one-time pre-processing tasks needed for rendering.
- Correct, when the constructor creates an object, the pre-processing tasks can be done once.
- methods of an object can perform the actions needed at render time.
- Correct, tasks that must be preformed repeatedly can be performed by an object's methods.
- it reduces the number of global variables that have to be created.
- Correct, an object encapsulates data and functions that would be global otherwise.
- WebGL is an object-oriented system.
- Incorrect. WegGL is collection of function calls and it is not explicitly object-oriented.
-
Q-21: Object-oriented programming facilitates code re-use.
- True
- Correct, since multiple instances of a class can be created as needed.
- False
- Incorrect.
-
Q-22: Object-oriented programming encapsulates a group of related data values and
functionality that can manipulate that data. In so doing, many variables that
would otherwise be global variables are contained inside a single object instance.
This reduces the number of global variables in a program. Why is this so important? (Select all that apply.)
- Global variables can be accidentally redefined, which can make errors very difficult to track down.
- Correct, especially when JavaScript already has many, many global variables.
- If you pick a variable name that JavaScript is already using for some other data, you might be modifying JavaScript in ways you don't understand.
- Correct. There are so many JavaScript global variables, you could easily pick a name that is already in use for something else.
- Global variables can't be changed easily.
- Incorrect. Global variables nca be changed anywhere in a program.
- Your global variables might be changed by the browser.
- Incorrect. The browser doesn't know about your global variables.
